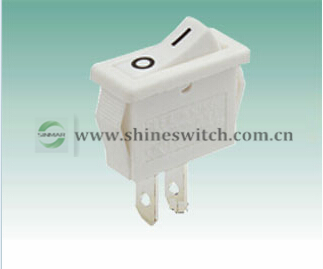

Shanghai Sinmar Electronics Rocker Switches 6A250VAC 3PIN Ship Paddle Switches RL3-10 manufacturer from China Shanghai Sinmar Electronics Co.,Ltd

Product Detail

Model No.: RL3-10

Production Capacity: 500000pcs per month

Delivery Date: 5-7days

Max. Current: 16A

Mechanical Life: 200000

Means of Transport: Air

Packing: 50-200pcs per box

Brand Name: sinmar

Max. Voltage: 250VAC

1) Long life ,high reliability.
2) A variety of contact terminals.
3) A variety of on-off function.
4) A variety of switch colors and marks.

Technical characteristics

10A 125VAC

G 6 (2) A 250VAC T125 / 55 1E4

Rating 16A 125VAC / 10A 250VAC 1 / 3HP 125-250VAC

H 10 (4) A 250VAC T125 / 55 1E4

10 (2) A 250VAC T85 / 55 5E4

Switch Function: ON-OFF

Insulation resistance: ≥100mΩ (500VDC)

Contact resistance: ≤30MΩ (initial value)

Withstanding voltage: AC1500V, 50 / 60Hz, 1min

Anti-Vibration: 10 ~ 55Hz, 1.5mm double amplitude

Switch button intensity: 300 ~ 600gf

Life: Mechanical ≥500,000 times; electrical ≥10,000 times

Working temperature: -25 ~ + 125 ° C

Safety Certification: UL, CUL, ENEC, CQC
