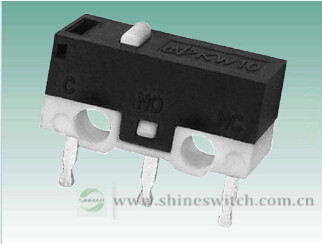

Technical characteristics
Working speed: 1mm ~ 500m / s and drive-related
Rating: 3 (0.5) A250VAC (Default) / 1 (0.5) A250VAC / 0.5 (0.2) A250VAC / 0.3 (0.1) A250VAC / 0.1 (0.05) A250VAC
Operating Frequency: Mechanical 60 times / min; Electrical 25 times / min
Insulation resistance: ≥100mΩ (500VDC)
Contact resistance: Action Force> 0.75N: ≤30MΩ
Operating force ≤0.75N: ≤50MΩ
KW10-D, E, F ≤100MΩ
Withstanding voltage: between terminals with extremely phase AC600V, 50 / 60Hz, 1min
Between the carrying metal parts and ground (shell), AC1000V, 50 / 60Hz, 1min
Between terminals and uncharged metal parts
Anti-Vibration: 10 ~ 55Hz, 1.5mm double amplitude
Impact: Fault 300M / S ^ 2 (about 30G) max
Life: Mechanical ≥1,000,000 times
Electrical ≥10,000 times
Weight: about 0.6g (no boom)
Safety Certification: UL, CUL, TUV, CE, EK, CQC
